Printer

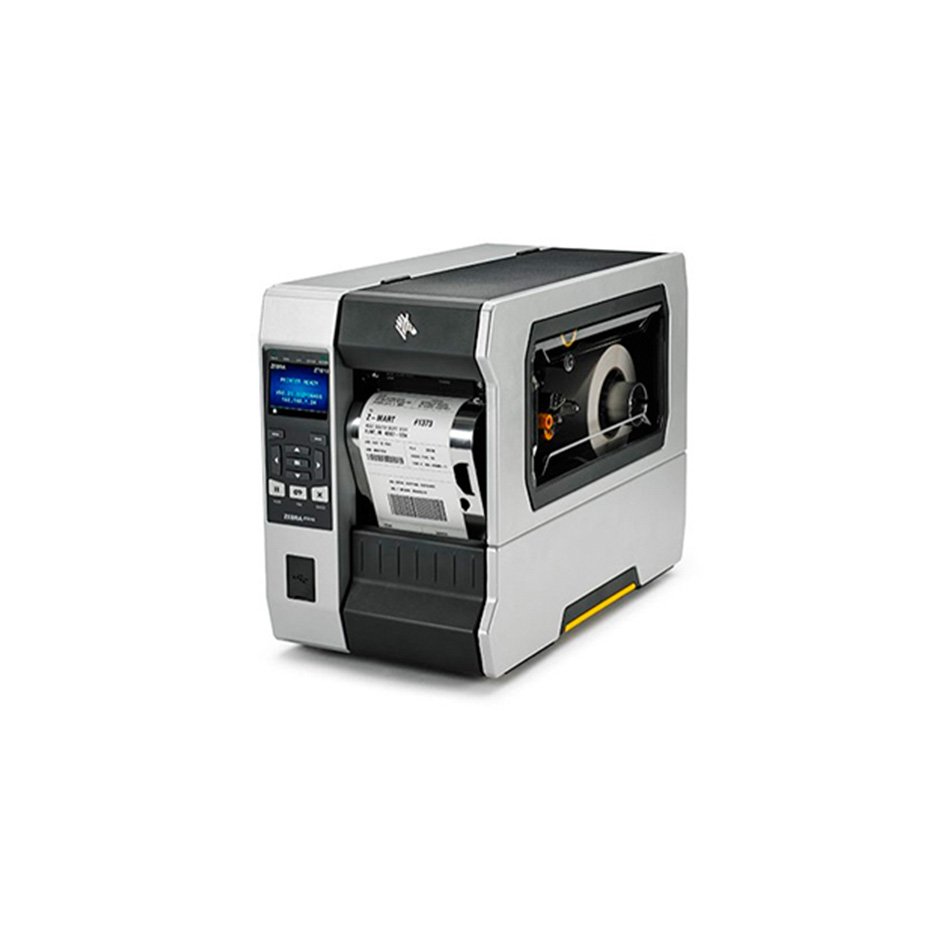

Zebra - ZT600

Operational & Asset Visibility Services (OVS/AVS) perfectly complement your business technology investments by giving you deep insight into the status, utilization and functionality of Link-OS enabled printing systems critical to your core processes. Plus, with Printer Profile Manager Enterprise, you can manage settings, firmware and more, on-site or remotely, so you’re always in control.

Send Inquiry

Standard Features

Print Methods: Thermal transfer and direct thermal printing
Construction: Metal frame and bi-fold metal media cover with enlarged clear viewing window
Side-loading supplies path for simplified media and ribbon loading
Thin film printhead with E 3 ™ Element Energy™ Equalizer for superior print quality
Communications: USB 2.0, high-speed, RS-232 Serial, Gigabit Ethernet, Bluetooth 4.0

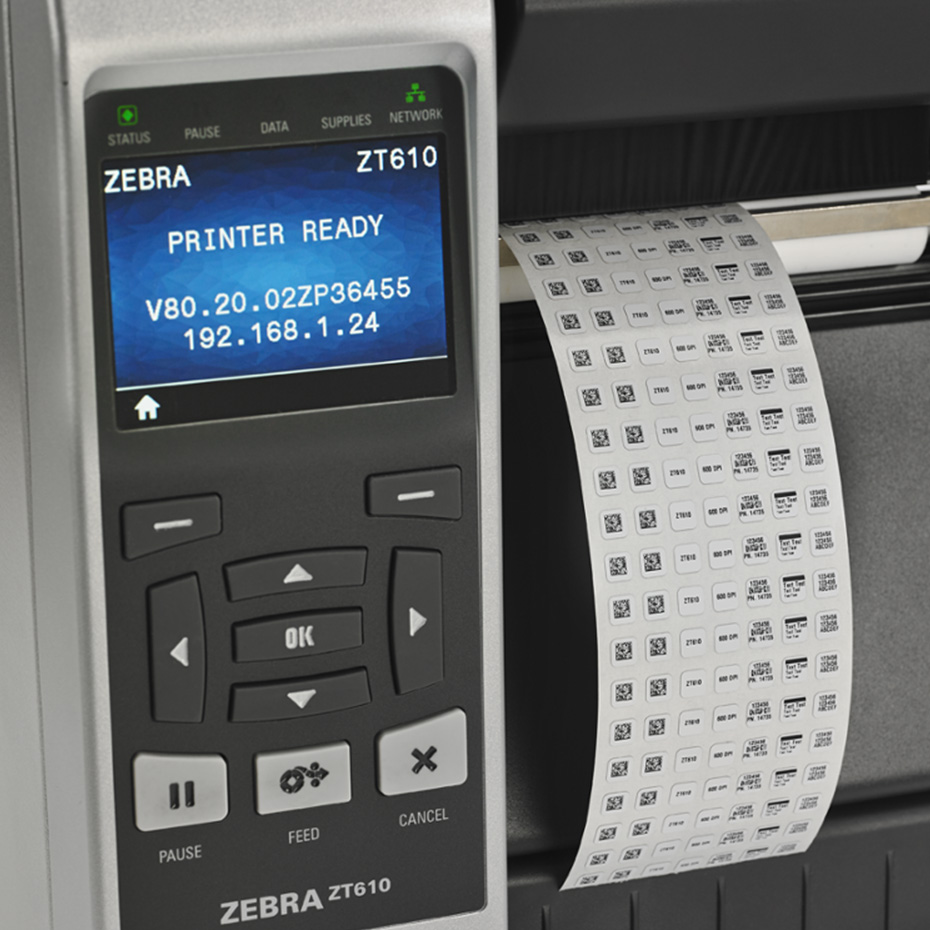

Highly visible color display that turns red when the printer is in an error state allows operators to determine printer status from a distance
Simplified icon menu navigation system categorizes settings into logical groups of functions

Printer Specifications

Resolution : 203 dpi/8 dots per mm; 300 dpi/12 dots per mm (optional); 600 dpi/24 dots per mm (optional for ZT610 only);
Memory : 1 GB RAM memory; 2 GB on-board linear Flash memory

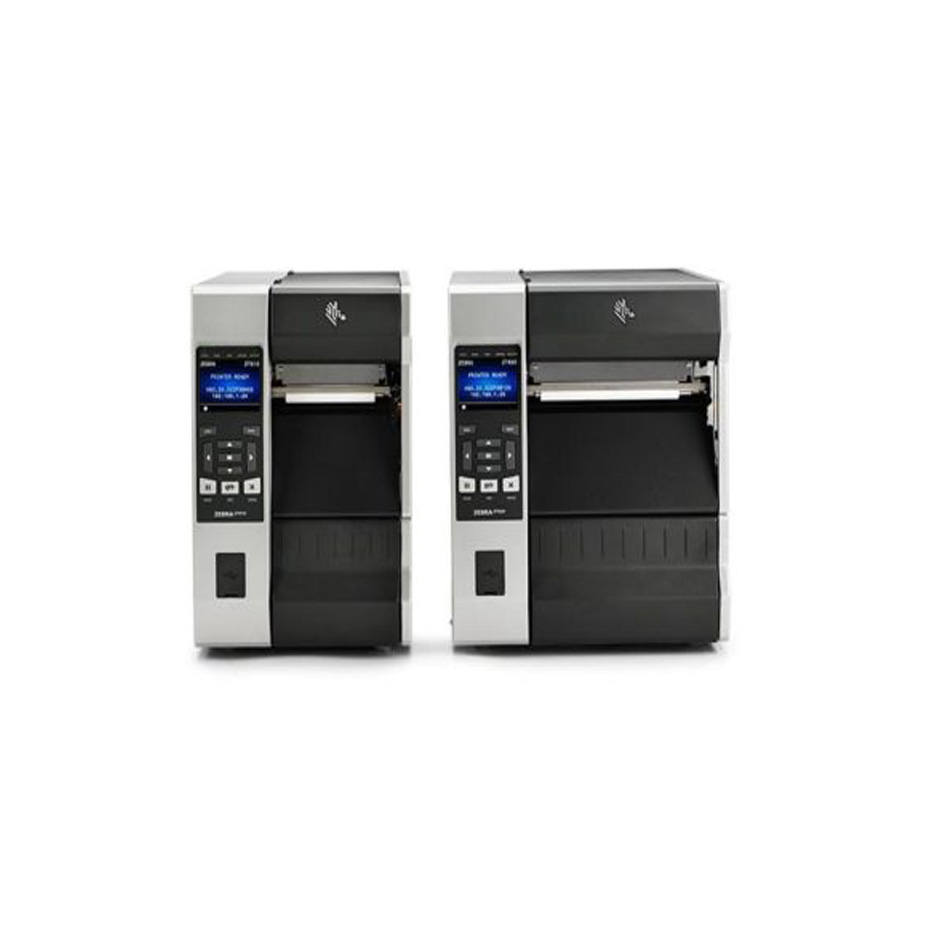

Maximum Print Width : ZT610: 4.09"/104 mm; ZT620: 6.6"/168 mm
Maximum Print Speed : ZT610: 14 ips/356 mm per second; ZT620: 12 ips/305 mm per second
Media Sensors : Dual media sensors: transmissive and reflective
Maximum Continuous Print Length ZT610 : 203 dpi: 150"/3810 mm; 300 dpi: 130"/3302 mm; 600 dpi: 30"/762 mm;
Maximum Continuous Print Length ZT620 : 203 dpi: 150"/3810 mm; 300 dpi: 100"/2540 mm

Media Characteristics

Media Width ZT610 : 1.00"/25.4 mm to 4.5"/114 mm tear/cutter; 1.00"/25.4 mm to 4.25"/108 mm peel/rewind;
Media Width ZT620 : 2.00"/51 mm to 7.0"/178 mm tear/cutter; 2.00"/51 mm to 6.75"/171 mm peel/rewind;
Maximum Media Roll Size : 8.0"/203 mm O.D. on a 3"/76 mm I.D. core
Thickness : 0.0023"/0.058 mm to 0.010"/0.25 mm
Media Types : Continuous, die-cut, notch, black-mark

Keyboard Display Unit

ZKDU™ keyboard display units for stand-alone printing applications

Documents

Ribbon Characteristics

Standard Length : 1476'/450 m
Width ZT610 : 2.00"/51 mm to 4.33"/110 mm
Width ZT620 : 2.00"/51 mm to 6.85"/174 mm
Core : 1.0"/25.4 mm I.D.

Operating Characteristics

Environmental Operating Temperature : Thermal transfer = 40ºF to 104ºF/5ºC to 40ºC;
Environmental Operating Temperature : Direct thermal = 32ºF to 104ºF/0ºC to 40ºC;
Environmental Operating Humidity : 20% to 85% non-condensing
Environmental Storage/Transportation Temperature : -22F to 140F/-30C to 60C
Environmental Storage Humidity : 20% to 85% non-condensing
Electrical : Auto-detectable (PFC Compliant) 90-265 VAC, 47-63Hz, rated at 250 Watts ENERGY STAR qualified
Agency Approvals : IEC 60950, EN 55022 Class B, EN 55024, EN 61000-3-2, EN 61000-3-3;cTUVus, CE Marking, FCC-B, ICES-003, VCCI, C-Tick, NOM,S-Mark (Arg), CCC, CU, BSMI, KCC, SABS, IN-Metro

Connectivity

Two open communication slots to add internal cards for 802.11ac, parallel, Ethernet, and applicator interface. IPv6 option is available as an external dongle attached to a parallel port

Media Handling

Rewind : Internally rewinds a full roll of printed labels on 3" core, or peels and rewinds liner
Cutter : Front-mount guillotine cutter and catch tray
1" I.D. Core media supply hanger
Ink-side in ribbon supply spindle

Rfid

Supports tags compatible with: UHF EPC Gen 2 V2, ISO/IEC 18000-63 and RAIN RFID protocols
Integrated RFID system is user-upgradable in the field and available on both 4" and 6" models
Adaptive Encoding Technology automatically selects optimum encode settings

Thermal Transfer Ribbon
