Printer

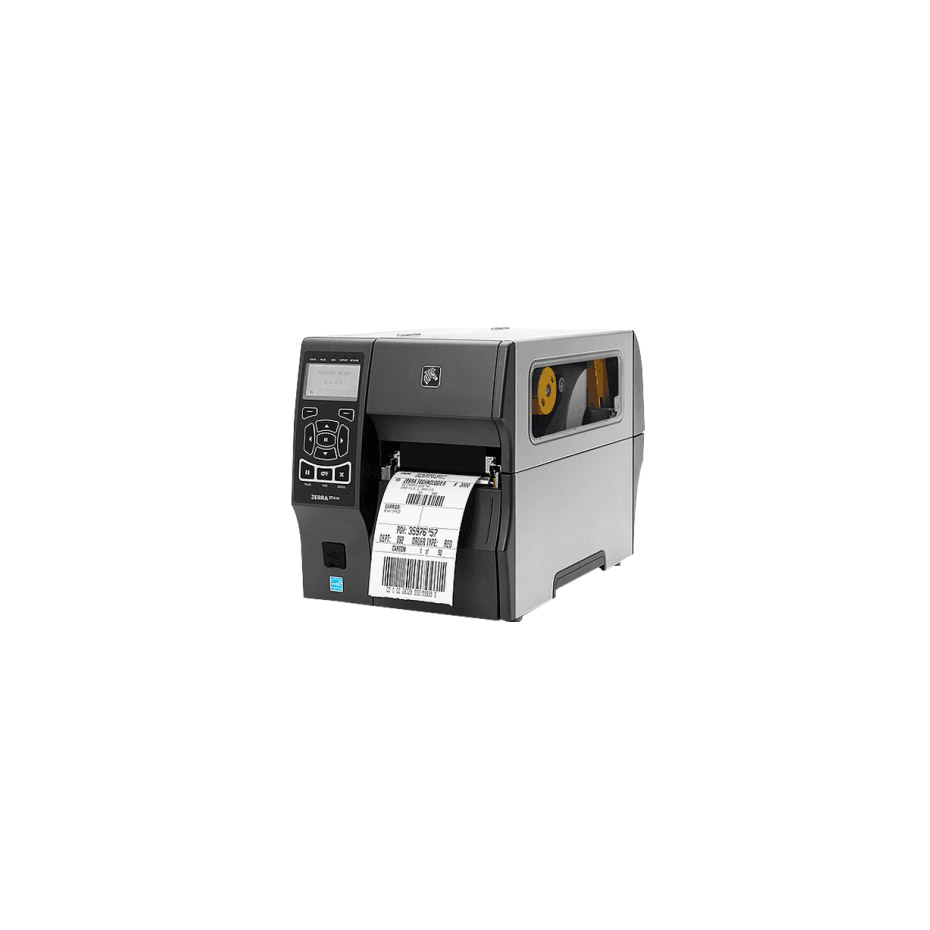

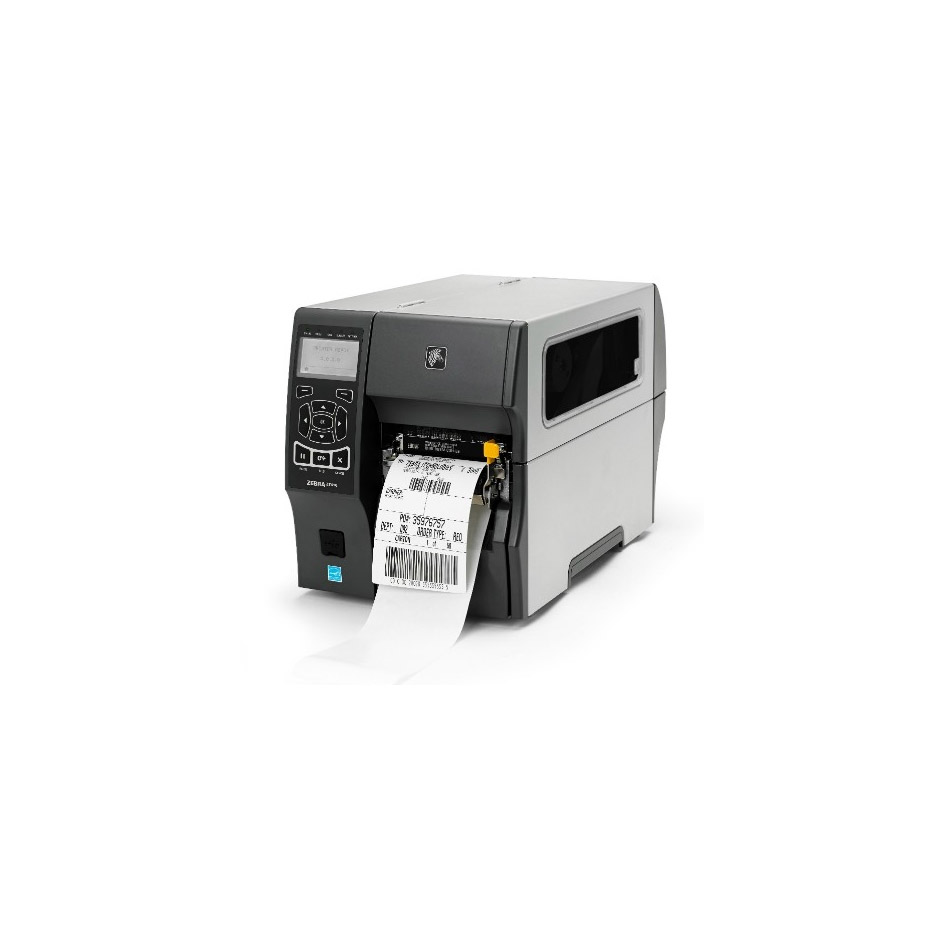

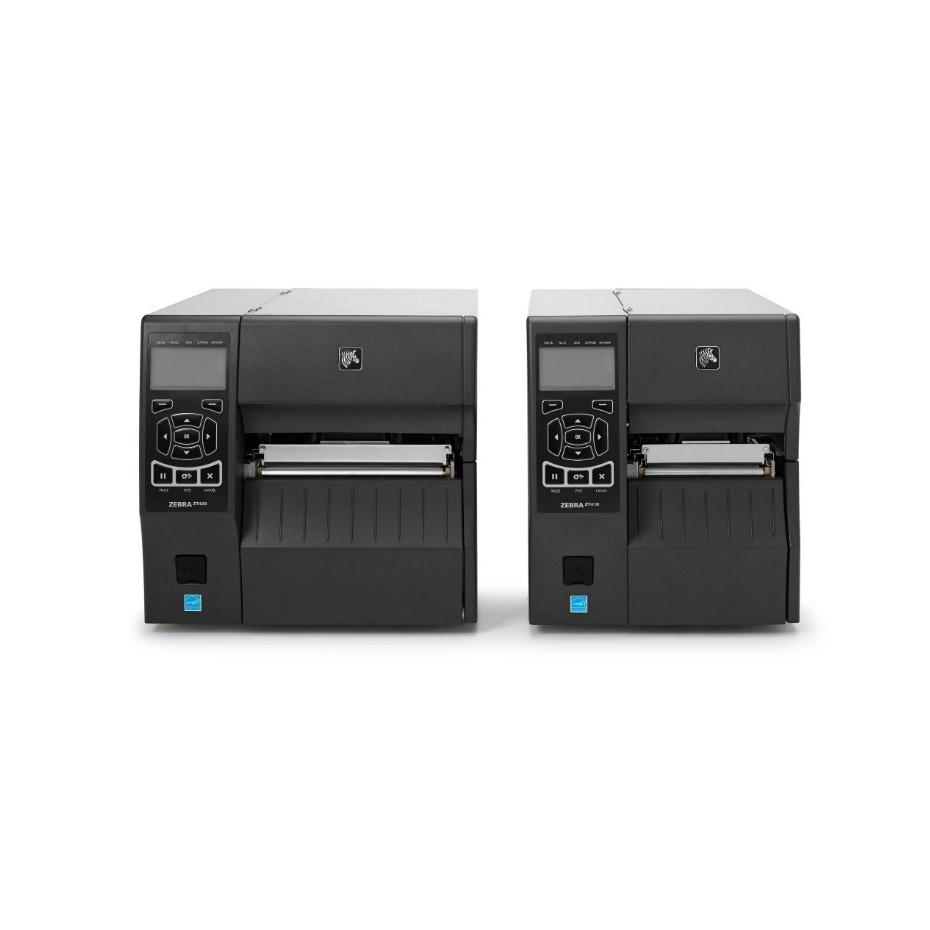

Zebra - ZT400

Zebra’s durable ZT400™ Series printers are designed for years of performance in a wide array of applications. Building on the field-proven reliability of the Z Series™, ZT400 Series printers feature advancements in print speed, print quality and connectivity options.

Send Inquiry

Standard Features

Print Methods: Thermal transfer and direct thermal printing
Construction: Metal frame and bi-fold metal media cover with enlarged clear viewing window
Side-loading supplies path for simplified media and ribbon loading
Thin film printhead with E 3 ™ Element Energy™ Equalizer for superior print quality
Communications: USB 2.0, high-speed, RS-232 Serial, 10/100 Ethernet, Bluetooth 2.1, USB Host
Back-lit, multiline graphic LCD display with intuitive menu and easy-to-use keypad for quick operation
Bi-colored status LEDs for quick printer status
ENERGY STAR qualified

Printer Specifications

Resolution : 203 dpi/8 dots per mm; 300 dpi/12 dots per mm (optional); 600 dpi/24 dots per mm (optional for ZT410 only);
Memory : 256 MB SDRAM memory; 512 MB on-board linear Flash memory;
Maximum Print Width : ZT410 : 4.09"/104 mm; ZT420: 6.6"/168 mm
Maximum Print Speed: ZT410 : 14 ips/356 mm per second; ZT420: 14 ips/305 mm per second
Media Sensors : Dual media sensors: transmissive and reflective
Print Length ZT410 : 203 dpi: 157"/3988 mm; 300 dpi: 73"/1854 mm; 600 dpi: 39"/991 mm;
Print Length ZT420 : 203 dpi: 102"/2591 mm; 300 dpi: 45"/1143 mm;

Documents

Media Characteristics

Maximum Media Width ZT410 : 1.00"/25.4 mm to 4.5"/114 mm tear/cutter; 1.00"/25.4 mm to 4.25"/108 mm peel/rewind;
Maximum Media Width ZT420 : 2.00"/51 mm to 7.0"/178 mm tear/cutter; 2.00"/51 mm to 6.75"/171 mm peel/rewind
Maximum Media Roll Size : 8.0"/203 mm O.D. on a 3"/76 mm I.D. core
Thickness : 0.0023"/0.058 mm to 0.010"/0.25 mm
Media Types : Continuous, die-cut, notch, black-mark

Ribbon Characteristics

Standard Length : 1476'/450 m
Width ZT410 : 2.00"/51 mm to 4.33"/110 mm
Width ZT420 : 2.00"/51 mm to 6.85"/174 mm
Core : 1.0"/25.4 mm I.D.

Operating Charactersitics

Environmental Operating Temperature : Thermal transfer = 40ºF to 104ºF/5ºC to 40ºC; Direct thermal = 32ºF to 104ºF/0ºC to 40ºC
Environmental Operating Humidity : 20% to 85% non-condensing;
Storage/Transportation Temperature : -40ºF to 140ºF/-40ºC to 60ºC
Storage Humidity : 5% to 85% non-condensing
Electrical : Auto-detectable (PFC Compliant) 100-240VAC, 50-60Hz,rated at 100 Watts ENERGY STAR qualified
Agency Approvals : IEC 60950, EN 55022 Class B, EN 55024, EN 61000-3-2,EN 61000-3-3; cTUVus, CE Marking, FCC-B, ICES-003, VCCI, C-Tick, NOM, S-Mark (Arg), CCC, CU, BSMI, KCC, SABS, IN-Metro
