Printer

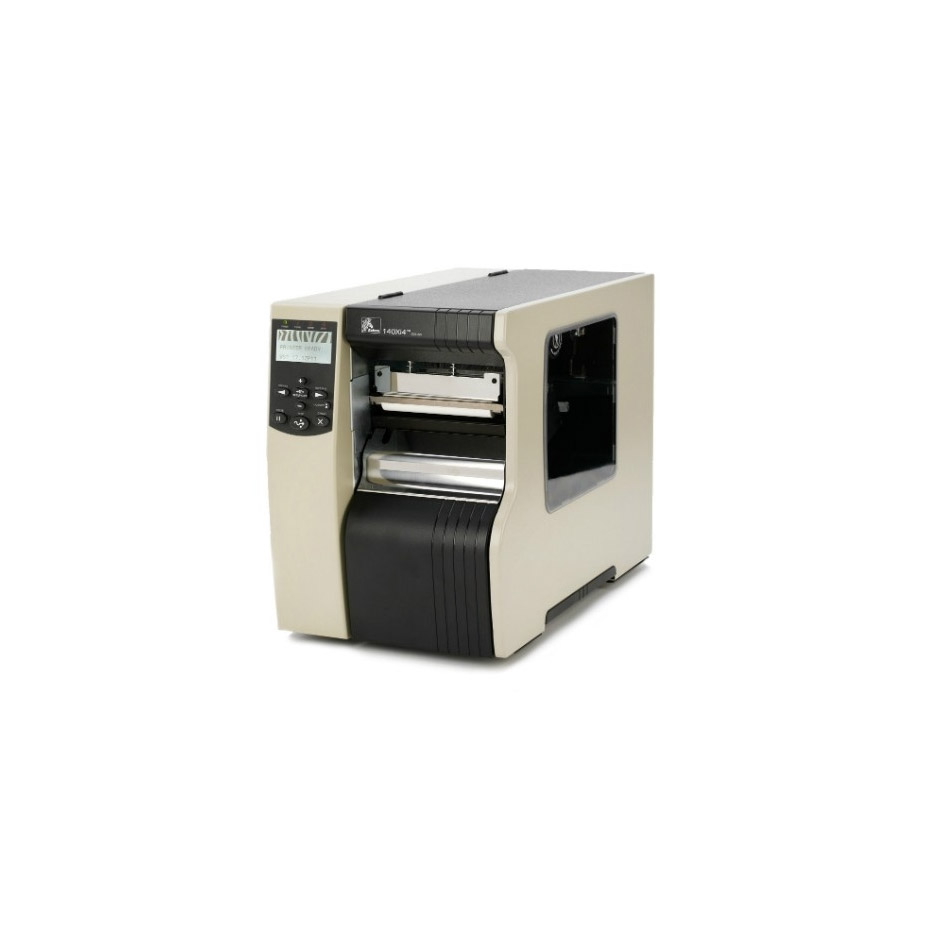

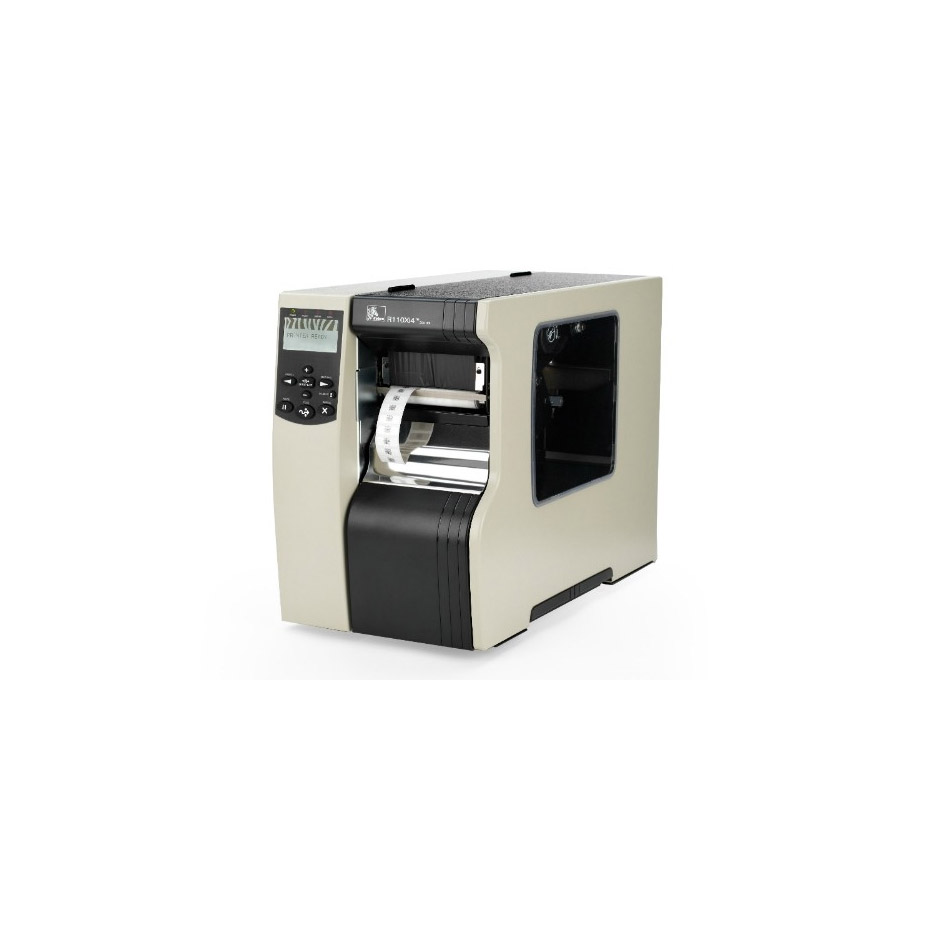

Zebra - XI4

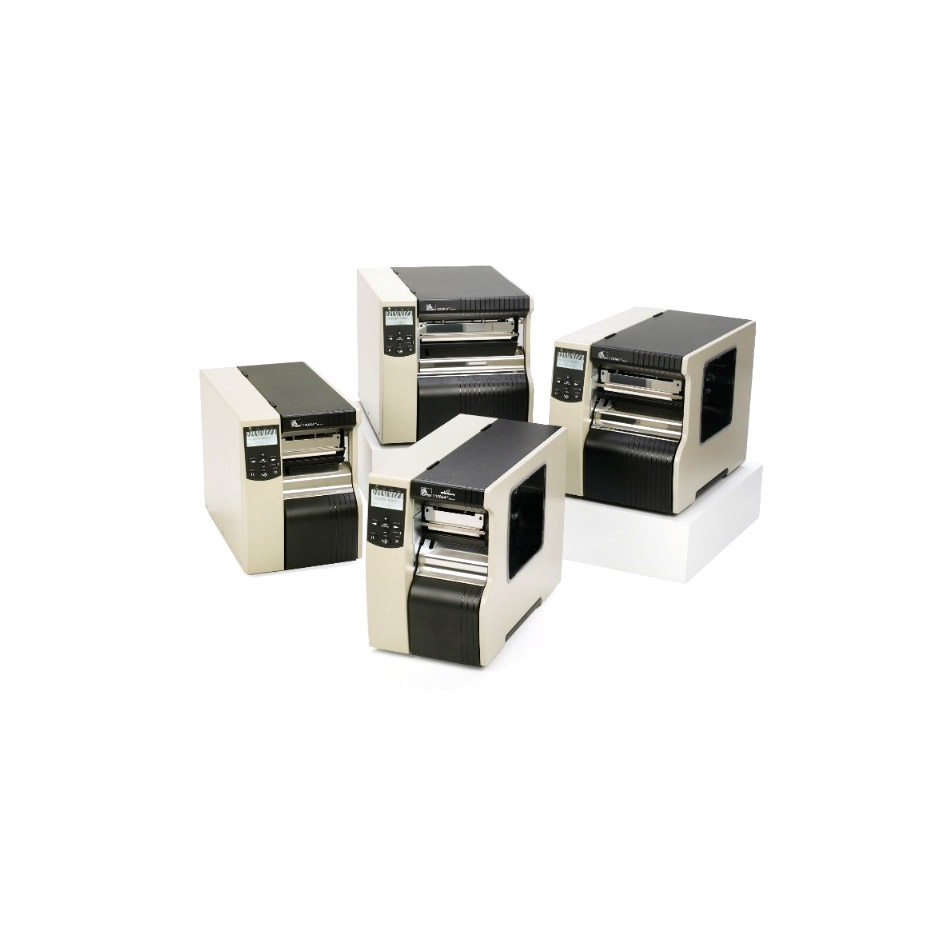

Zebra’s built-to-last Xi™ series printers are renowned for their incredible durability, consistently outstanding print quality, fast print speed, long life and unparalleled reliability in demanding applications. These qualities translate into low total cost of ownership — making them a smart investment for organizations with high-volume, mission-critical or specialty labeling applications.

Send Inquiry

Standard Features

Print methods: Thermal transfer or direct thermal

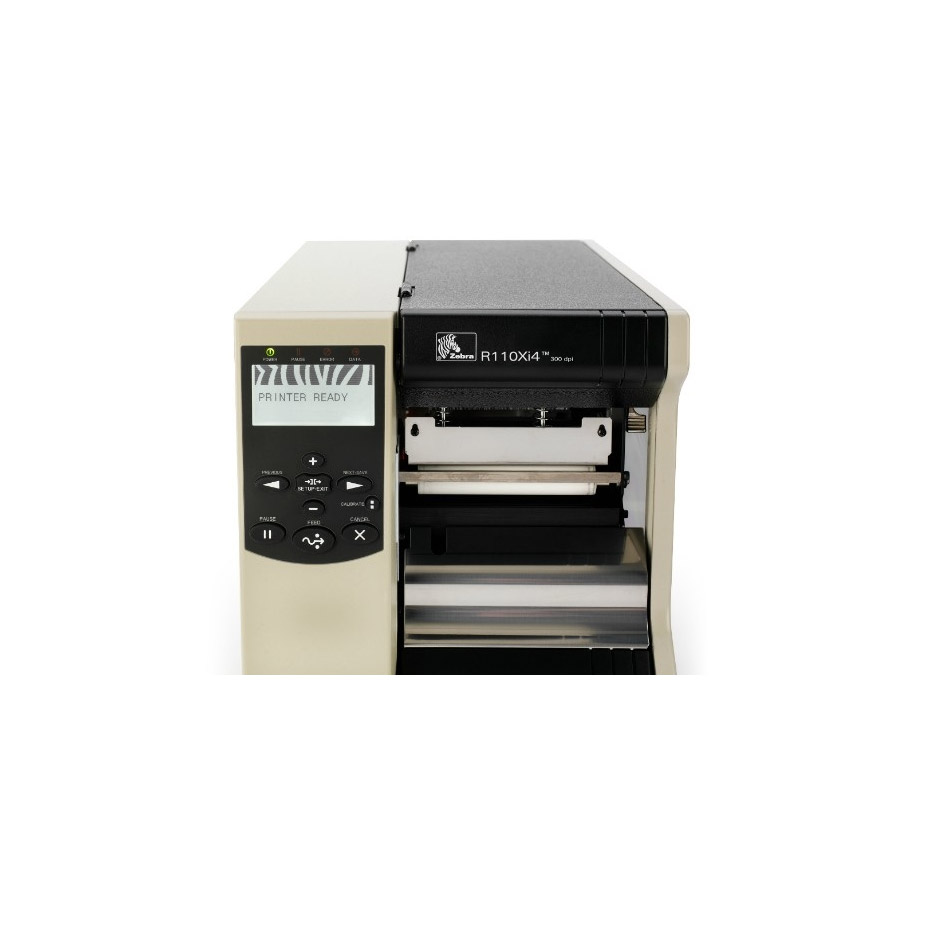

Full-function front panel and large, multilingual, back-lit LCD display with user-programmable password protection
Clear media side door allows easy monitoring of supplies usage without opening the printer systems
32 bit 133 Mhz RISC processor
64 MB on-board linear Flash memory
16 MB SDRAM Flash memory
Internal real-time clock
Advanced label/media counters
Dual media sensors — transmissive and reflective, selectable through software or front panel
Auto calibration when printer is turned on or when printhead is closed using approximately two labels
Early warning systems provide low label, low ribbon and clean printhead alerts via the front panel and ZebraLink alerts
Thin film printhead with E 3 ™ Element Energy™ Equalizer for superior print quality
Communications: USB 2.0, RS-232 Serial, and bi-directional Parallel port with auto detect
Internal ZebraNet® 10/100 Print Server (Ethernet)
ENERY STAR® qualified (140Xi4, 170Xi4, 220Xi4)

PRINTER SPECIFICATIONS

Resolution : 203 dpi/8 dots per mm;300 dpi/12 dots per mm; 600 dpi/23.5 dots per mm (110Xi4 only);
Memory : 64 MB Flash; 16 MB RAM
Maximum Print Width 110Xi4 : 4.0” /102 mm; 140Xi4: 5.04” /128 mm; 170Xi4: 6.6” /168 mm; 220Xi4: 8.5” /216 mm;
Maximum Print Speed 110Xi4 : 14” /355.6 mm per second (203 dpi); 12” /304.8 mm per second (300 dpi); 6” /152.4 mm per second (600 dpi)
Maximum Print Speed 140Xi4 : 14” /355.6 mm per second (203 dpi)
Maximum Print Speed 170Xi4 : 12” /304.8 mm per second (203 dip); 8” /203.2 mm per second (300 dpi)
Maximum Print Speed 220Xi4 : 10” /254 mm per second (203 dpi); 6” /152.4 mm per second (300 dpi)

Documents

Ribbon Characteristics

Outside Diameter: 3.2"/81.3 mm
Standard Length: 1476'/450 M; 984'/300 M
Width:110Xi4: 0.79” (20 mm) to 4.33” (110 mm); 140Xi4: 1.57” (40 mm) to 5.1” (130 mm); 170Xi4: 2.0” (51 mm) to 6.7” (170 mm); 220Xi4: 4.25” (108 mm) to 8.6” (220 mm);
Core I.D. : 1.0”/25.4 mm

Physical Characteristics

110Xi4 : Height: 15.5” / 393.7 mm; Width: 10.31” / 261.9 mm; Depth: 20.38” / 517.5 mm;Weight: 50 lbs. / 22.7 kg;
140Xi4 : Height: 15.5” / 393.7 mm; Width: 11.31” / 287.3 mm; Depth: 20.38” / 517.5 mm;Weight: 55 lbs. / 25.0 kg;
170Xi4 : Height: 15.5” / 393.7 mm; Width: 13.31” / 338.1 mm; Depth: 20.38” / 517.5 mm;Weight: 67 lbs. / 30.5 kg;
220Xi4 : Height: 15.5” / 393.7 mm; Width: 15.81” / 401.6 mm; Depth: 20.38” / 517.5 mm;Weight: 72 lbs. / 32.7 kg

MEDIA CHARACTERISTICS

Media Width 110Xi4 : 0.79”(20mm) to 4.5” (114 mm); 140Xi4: 1.57” (40 mm) to 5.51” (140 mm); 170Xi4: 2.0” (51 mm) to 7.1” (180 mm);220Xi4: 4.25” (108 mm) to 8.8” (224 mm);
Maximum Media Roll Size : 8.0” (203 mm) outside diameter on a 3” (76 mm) inside diameter core
Thickness : 0.003"/0.076 mm to 0.012"/0.305 mm
Media Types : Continuous, die-cut gap, black mark, notch or hole
Minimum Non- Continuous Label Length : 0.25"/6 mm (Rewind mode); 0.5"/13 mm (Peel mode); 0.7"/18 mm (Tear-off mode); 1.5"/38 mm (Cutter mode);
Outside Diameter : 3.2"/81.3 mm
Standard Length : 1476'/450 M; 984'/300 M;
Width ：110Xi4: 0.79” (20 mm) to 4.33” (110 mm); 140Xi4: 1.57” (40 mm) to 5.1” (130 mm); 170Xi4: 2.0” (51 mm) to 6.7” (170 mm); 220Xi4: 4.25” (108 mm) to 8.6” (220 mm);
Core I.D. : 1.0”/25.4 mm
