Printer

Standard Features

• 300 meter ribbon capacity
• 32 bit RISC processor
• Co-resident EPL2 and ZPL II programming languages

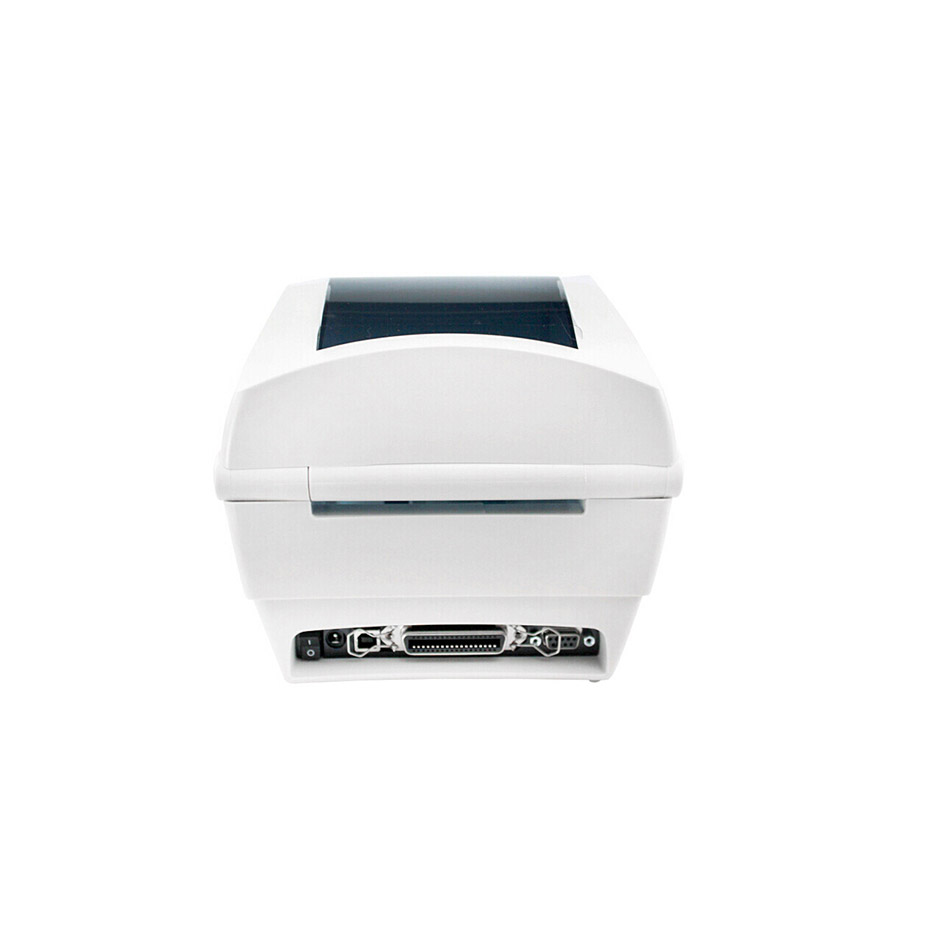

• Triple connectivity: Serial, USB and parallel
• Print methods: Thermal transfer and direct thermal modes; printing of bar codes, text and graphics.

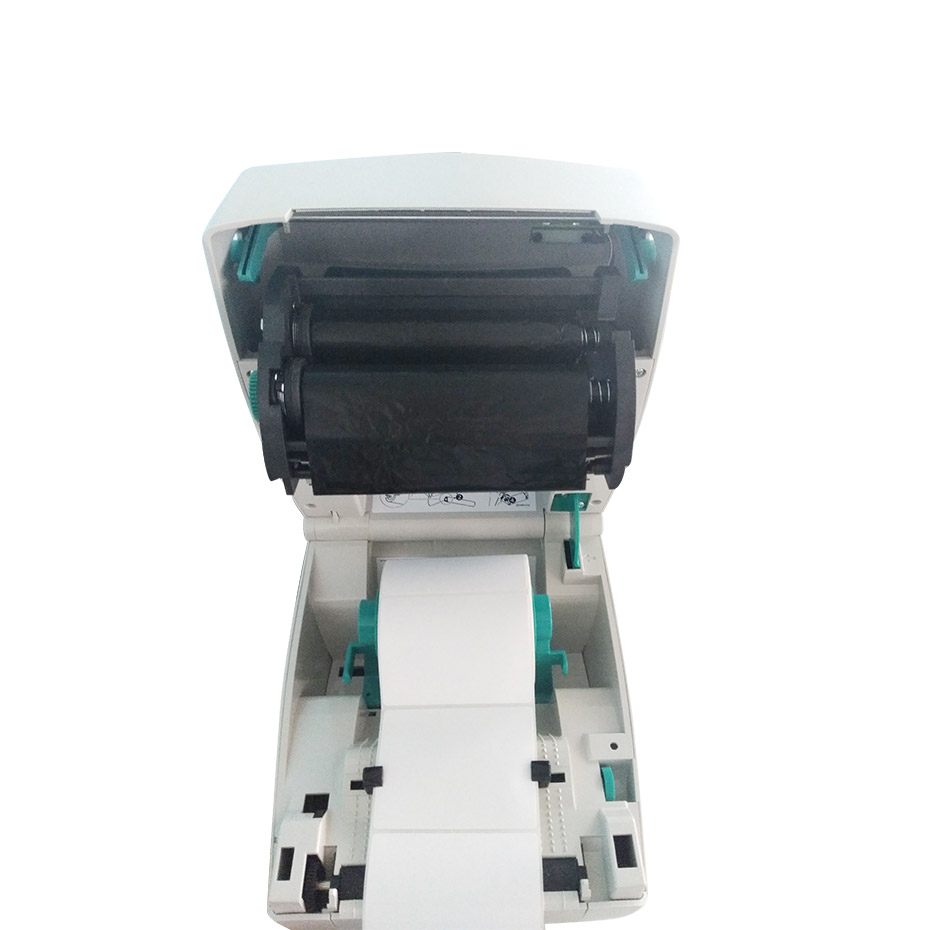

• OpenACCESS™ for easy media and ribbon loading
• Microsoft ® Windows ® drivers

Ribbon Characteristics

• Outside diameter: 2.6"/66 mm (300 m); 1.34"/34 mm (74 m)
• Standard length: 984' (300 m); 242' (74 m)
• Ratio: 1:4 One ribbon roll per 4 rolls of media (300 Meter);1:1 One ribbon roll per roll of media (74 Meter)
• Width: 1.33"/33.8 mm to 2.4"/58 mm
• Core I.D.: 300 m ribbon 1.00"/25.4 mm;74 m ribbon 0.5"/12.7 mm

Operating Characteristics Environmental

• Operating Temp: 40° F/5° C to 105° F/41° C
• Storage Temp: -40° F/-40° C to 140° F/60° C
• Operating Humidity: 10% to 90% non-condensing R.H
• Storage Humidity: 5% to 95% non-condensing R.H.

Electrical Specifications

• Auto-ranging external power supply with C7 type connector
• Output: 20 VDC, 2.5A
• Input: 100-240 VAC, 50-60 Hz

Documents

•

  Data Sheet CN
  GK888T-data-sheet-cn.pdf

•

  Data Sheet EN
  GK888T-data-sheet-en.pdf
