Printer

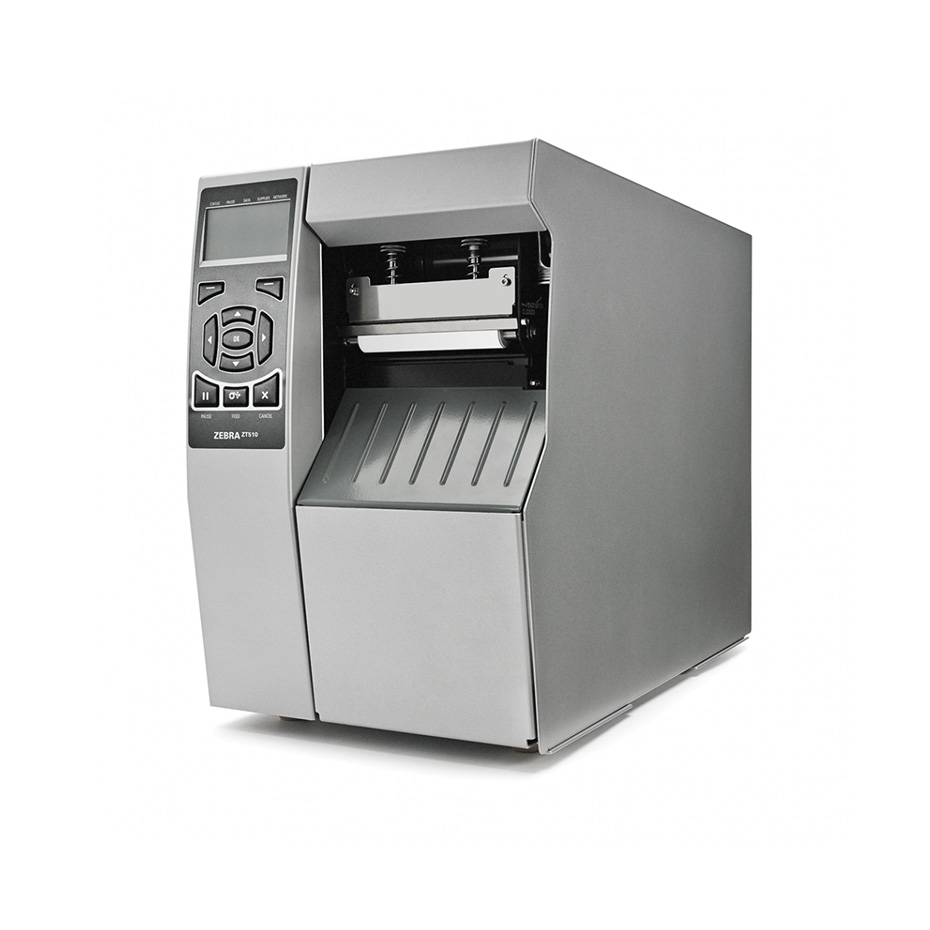

Zebra - ZT510

Zebra’s highly intelligent, best-in-class Link-OS environment provides greater insight into the real-time status and functions of your printing processes. With Link-OS, you can use a single cloud-based application to manage routing, firmware updates, printer configuration and more, on-site or remotely. And applications like Virtual Devices, Profile Manager, Near Field Communication (NFC) and Print Touch make it easy to integrate, update and contact support.

Send Inquiry

Standard Features

Print Methods: Thermal transfer and direct thermal printing
Construction: Metal frame
Thin film printhead with E 3 ™ Element Energy™ Equalizer for superior print quality
Communications: USB, Serial, Gigabit Ethernet, Bluetooth® LE
Backlit, multi-line display including an intuitive menu, easy-to-use keypad and password protection

Printer Specifications

Resolution : 203 dpi/8 dots per mm; 300 dpi/12 dots per mm (optional);
Memory : 512 MB RAM memory; 2 GB on-board linear Flash memory;
Maximum Print Width : 4.09"/104 mm
Maximum Print Speed : 12 ips/305 mm per second
Media Sensors : Dual media sensors: transmissive and reflective
Maximum Continuous Print Length : 203 dpi: 150"/3810 mm; 300 dpi: 100"/2540 mm;

Documents

Media Characteristics

Media Width : 0.79"/20 mm to 4.5"/114 mm
Maximum Media Roll Size : 8.0"/203 mm O.D. on a 3"/76 mm I.D. core
Thickness : 0.003"/0.076 mm to 0.012"/0.305 mm
Media Types : Continuous, die-cut, notch, black-mark

Ribbon Characteristics

Standard Length : 1476'/450 m
Width : 2.00"/51 mm to 4.33"/110 mm
Core : 1.0"/25.4 mm I.D.

Physical Characteristics

Length : 20.17"/512.3 mm
Width : 10.56"/268.2 mm
Height : 15.58"/395.68 mm
Weight : 50 lbs/22.7 kg
